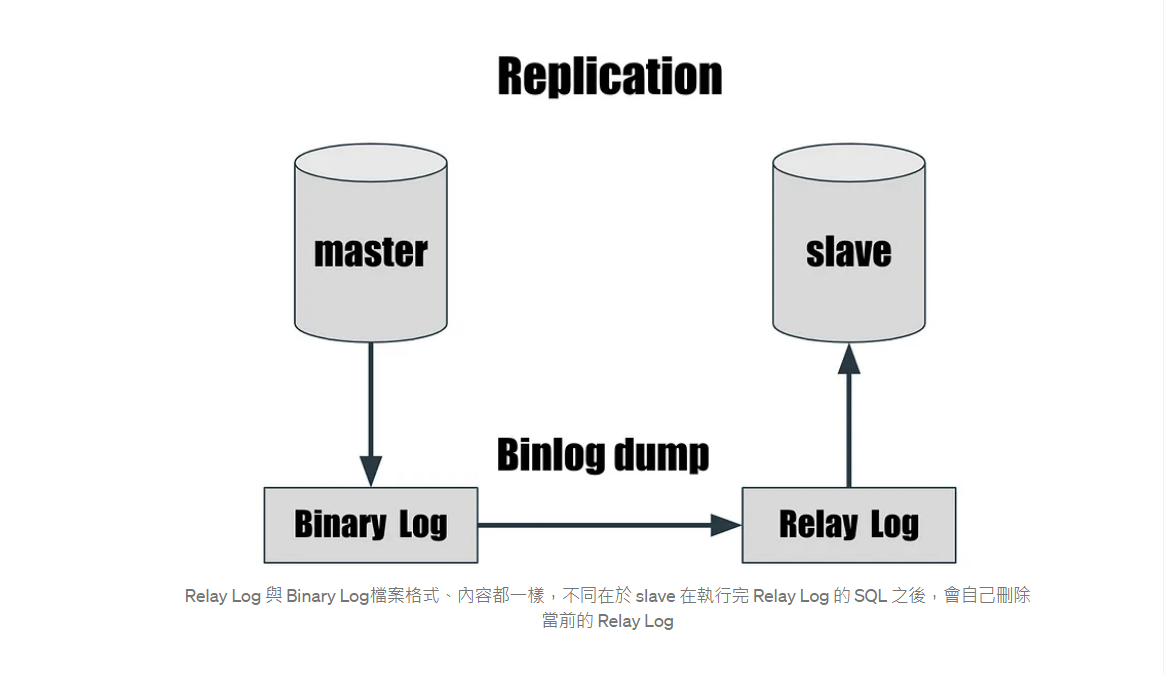

Master Slave Replication 的架構

在 master server 執行的 SQL command 會被記錄在 Binary Log 裡面

master 將 Binary Log 傳送到 slave 的 Relay Log

slave 依據 Relay Log 做資料的變更

建立 MySQL Replication 實作紀錄 [ Slave 設定為不寫 binlog]

Master server 設定 :

{ 修改 Master 設定檔 }

vim /etc/mysql/my.cnf

[mysqld]
skip-external-locking
sql_mode=NO_AUTO_Create_USER,NO_ENGINE_SUBSTITUTION

#default-storage-engine=MYISAM
explicit_defaults_for_timestamp=true
#--------------------------------------
#default-tmp-storage-engine=MYISAM
character_set_server: utf8
innodb_buffer_pool_size: 1500M
innodb_log_buffer_size: 32M
innodb_log_file_size: 16M
innodb_flush_log_at_trx_commit: 2
innodb_buffer_pool_instances: 1
innodb_file_per_table=1
#-------------------------------------
max_connections: 2000
max_allowed_packet: 64M
table_open_cache: 512
sort_buffer_size: 4M
net_buffer_length: 8K
read_buffer_size: 256K
read_rnd_buffer_size: 512K
myisam_sort_buffer_size: 128M
#key_buffer: 256M
#-------------------------------------
socket: /var/lib/mysql/mysql.sock
pid-file: mysql.pid
log-error: mysql.err
log-slave-updates
max_binlog_size: 500M
binlog_format="MIXED"
log-bin: log-bin
server_id: 999

relay-log-purge: 1
max-relay-log-size: 500M
relay-log-space-limit: 500M

slow_query_log: 1
slow_query_log_file: slow-queries.log
long_query_time: 1
#---------------------------------------------
[mysqld_multi]
mysqld: /usr/bin/mysqld_safe
mysqladmin: /usr/bin/mysqladmin

重新啟動 MySQL 服務 [使設定檔生效]

mysqladmin -uroot -p shutdown

mysqld_safe &

登陸 Master 建立 Slave 帳號

mysql -u root -p

STOP SLAVE;

GRANT REPLICATION SLAVE ON *.* TO '輸入使用者名稱'@'輸入來源 + %' IDENTIFIED BY '輸入密碼';

FLUSH PRIVILEGES;

SHOW MASTER STATUS;

exit;

DUMP 語法

mysqldump -uroot -p --all-databases > masterdatabase.sql

登陸 Master 查看 Master 資訊

mysql -u root -p

show master status;

exit;

將 SQL 檔 SCP 至 Slave

scp masterdatabase.sql root@slave主機來源:~

{ 修改 Slave 設定檔 }

Slave 停 DB

mysqladmin -uroot -p shutdown

將 Master 的 SQL 檔匯入 Slave

mysql -u root -p < /home/masterdatabase.sql

修改 Slave 設定檔

vim /etc/my.cnf

[mysqld]
skip-external-locking
#skip-innodb
#skip-name-resolve
sql_mode=NO_AUTO_Create_USER,NO_ENGINE_SUBSTITUTION
server_id: 998

innodb_buffer_pool_size: 1500M
innodb_log_buffer_size: 32M
innodb_log_file_size: 16M
innodb_flush_log_at_trx_commit: 2
innodb_buffer_pool_instances: 1

#innodb_file_format: barracuda
#innodb_file_format_max: barracuda
innodb_file_per_table: 1

read-only: 1
#-------------------------------------
max_connections: 2000
max_allowed_packet: 64M
table_open_cache: 512
sort_buffer_size: 4M
net_buffer_length: 8K
read_buffer_size: 256K
read_rnd_buffer_size: 512K
myisam_sort_buffer_size: 128M
#key_buffer: 256M
#-------------------------------------
socket: /var/lib/mysql/mysql.sock
pid-file: mysql.pid
log-error: mysql.err
log-slave-updates
port: 3306
relay-log-purge: 1
max-relay-log-size: 500M
relay-log-space-limit: 500M

slow_query_log: 1
slow_query_log_file: slow-queries.log
#long_query_time: 1
#---------------------------------------------
[mysqld_multi]
mysqld: /usr/bin/mysqld_safe
mysqladmin: /usr/bin/mysqladmin

啟動 Slave DB

mysqld_safe &

設定 SlaveDB，指定 Master DB 登入資訊，並啟動 Replication

mysql -u root -p

STOP SLAVE;

CHANGE MASTER TO MASTER_HOST='輸入Master主機ip', MASTER_USER='輸入使用者名稱', MASTER_PASSWORD='輸入密碼', MASTER_LOG_FILE='mariadb-bin.000001', MASTER_LOG_POS=479;

start slave;

SHOW SLAVE STATUS \G;

############################################
